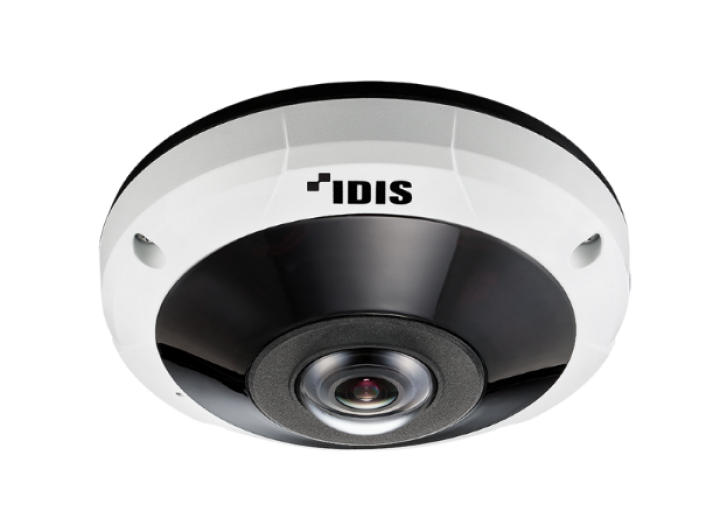

Special camera [Fisheye]DC-Y6C16WRX-A
| 12MP Sensor / 8.6MP (2944 x 2944) resolution, Fixed-focal lens (f=1.6mm) | |
|---|---|
| micro SD/SDHC/SDXC, Smart Failover (Up to 256GB), Alarm in / out, IK10 / IP67 supports | |
| IR LED (Distance 10m / 32.8ft) | |
| Day and night (ICR), True wide dynamic range (WDR) | |
| Various viewing composition, 6 dewarping view modes | |
| Easy installation with DirectIP NVR |
On the list Product Inquiry
본문
Product specification
| Video | |
| Image Sensor | 1/2.3" 12MP CMOS |
| Max. Resolution | 2944 x 2944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | f=1.6mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 180°(H), 180°(V), 180°(D) |
| Pan/Tilt/Zoom | - |
| Min. Illumination | Color : 0.3 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range- 표시 | 120 dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 15m / 49.2ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode Sharpness, Contrast, Colors, Brightness Control |
| Backlight Compensation | - |
| Image Stabilizer | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone, Heatmap |
| Viewing Composition | 1O, 1P, 1P2R, 2P, 4R, 1O7R |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S |
| Max. Frame Rate | 30ips : 2944 X 2944 15ips : 2944 x 2944 (WDR) |
| Supports Resolution | 2944x2944, 2208x2208, 2944x1472, 1472x1472, 768x768, 736x736, 768x384 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Alarm In / Out | 1/1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -30°C ~ 50°C (22°F ~ 122°F) / *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 0.94A, 11.3W PoE, IEEE 802.3af(Class 3), 10.6W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (Ø x H) | Ø135 x 56.9mm(Ø5.31" x 2.24") |
| Weight | 0.67kg(1.47 lb) |
