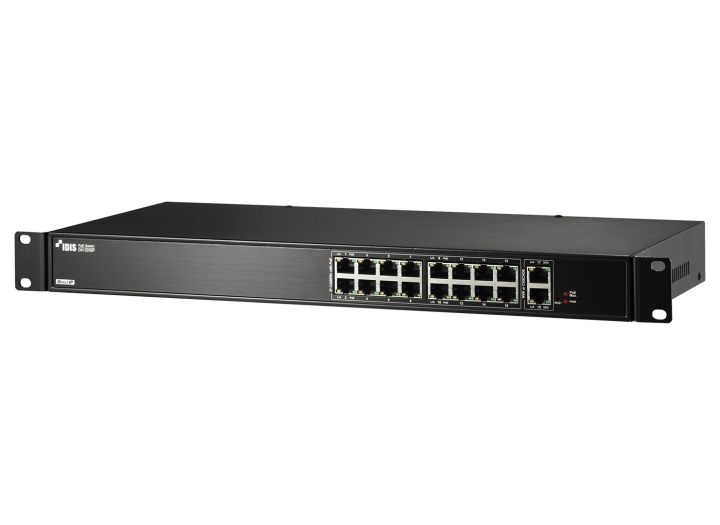

PoE [16P+2P]DH-2018P
| Individual port data transmission to DirectIP® NVR | |
|---|---|
| PoE (IEEE 802.3af, IEEE 802.3at) compliant | |
| Maximum per-device PoE delivery of 140W available for 1~16 RJ45 ports | |
| Central power control for greater network utility | |
| Supports 16 RJ45 ports |
On the list Product Inquiry
- PREVIOUS[24P+2P]DH-2026PF
- NEXT다음상품이 없습니다.
본문
Product specification
| System | |
| CPU | Embedded MIPS |
| System Memory | 256MB SDRAM, 32MB Flash |
| Switching Capacity | 7.2Gbps |
| Connectivity | |
| Copper Service Port | 16 RJ45 Connectors (10/100BASE-T) |
| Copper Uplink Port | 2 RJ45 Connectors (10/100/1000BASE-T) |
| Optical Uplink Port | none |
| PoE Power | |
| supported Standards | IEEE 802.3af-2003 / IEEE 802.3at-2009 |
| PD Connection | Up to 16 IEEE 802.3af PDs or up to 4 IEEE 802.3at PDs |
| PSE Power Budget | 140W |
| General | |
| Diemensions(W x H x D) | 430mm x 44mm x 180mm (17.0" x 1.7" x 7.1") |
| Weight | 2.05Kg (4.52lb) |
| Operation Temperature | 0°C ~ 40°C ('32°F ~ 104°F) |
| Power Input | AC100-240V, 2.0~1.0A, 50/60Hz |
| Power Consumption | 160W |
| Approvals | FCC,CE,KC,UL,CB |
