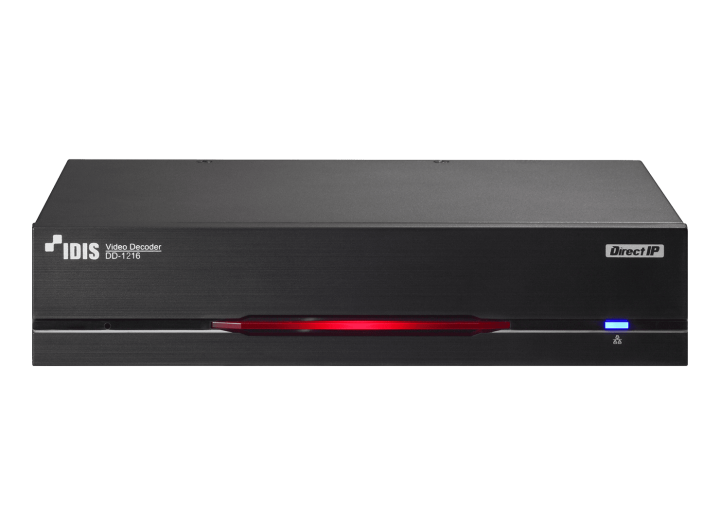

Encoder,Decoder [Decoder]DD-1216
| Supports DirectIP™ NVR | |
|---|---|
| Supports IDIS IP Camera | |
| Supports HDMI, VGA, CVBS port | |
| Up to 480ips live display |
On the list Product Inquiry
- PREVIOUS[16P+2P]DH-2018P
- NEXT다음상품이 없습니다.
본문
Product specification
| Decoder | |
| Video Compression | H.264, H.265 |
| Video Inputs | 16ch IP |
| Video Input resolution | up to 12MP |
| Supported Devices | DirectIP NVR, IDIS IP Camera |
| Video Outputs | 1 HDMI, 1 VGA, 1 CVBS |
| Display Resolution | HDMI : 3840x2160, 2560x1440, 1920x1200, 1920x1080, 1680x1050, 1600x1200 VGA : 2560x1440, 1920x1200, 1920x1080, 1680x1050, 1600x1200 CVBS : 720x480(NTSC) , 720x576(PAL) |
| Diplay Speed | Up to 480ips |
| Max. Network throughput | 90Mbps |
| Newtork Connection | Gigabit Ethernet x1 |
| General | |
| Dimension (W x H x D) | 200mm x 44mm x 153mm (7.9" x 1.7" x 6.0") |
| Unit Weight | 0.78kg (1.72lb) |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Shipping Weight | 1.11kg |
| PoE(class) | Yes(IEEE 802.3af Class 3) |
| Power Source | 12VDC, PoE |
| Power Consumption | 12V=, 1.03A, 12.7W, PoE, IEEE 802.3af(Class 3) |
| Approvals | FCC, CE, KC |
