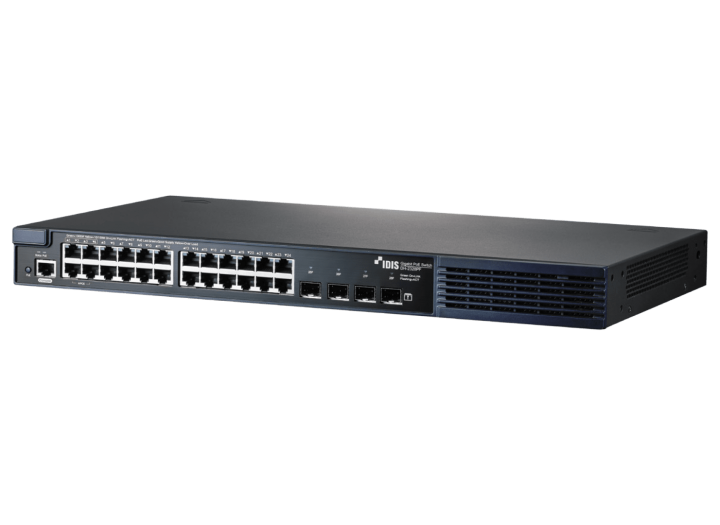

PoE [24P+4P]DH-2328PF
| Individual port data transmission to DirectIP™ NVR | |
|---|---|
| PoE (IEEE 802.3af, IEEE 802.3at ) compliant | |
| Maximum per-device PoE delivery of 380W available for 1~24 RJ45 ports | |
| Central power control for greater network utility | |
| Supports 24 RJ45 ports and 4 SFP slots |
On the list Product Inquiry
- PREVIOUS[TAIHAN]F/UTP Cat.6 4P
- NEXT[8p+2p+SFP 2P]DH-2212PF
본문
Product specification
| System | |
| CPU | 1Ghz single core |
| System Memory | 512MB SDRAM, 256MB Flash |
| Switching Capacity | 56Gbps |
| Connectivity | |
| Copper Service Port | 24 RJ45 Connectors (10/100/1000BASE-T) |
| Copper Uplink Port | - |
| Optical Uplink Port | 4 SFP Slot (1000BASE-X) |
| PoE Power | |
| supported Standards | IEEE 802.3af-2003 / IEEE 802.3at-2009 |
| PD Connection | Up to 24 IEEE 802.3af PDs or Up to 12 IEEE 802.3at PDs |
| PSE Power | 54.5VDC, 600mA, PoE 24 ports, max. 380W |
| General | |
| Diemensions(W x H x D) | 440mm x 42.8mm x 268mm (17.3" x 1.7" x 10.5") |
| Weight | 4.28kg (9.42lb) |
| Operating Temperature | 0°C to +50°C (-32℉~ 122℉) |
| Power Input | AC100-240V, 50-60Hz, 5.5A~2.5A |
| Power Consumption | max 460W |
| Approvals | FCC, CE, KC |
