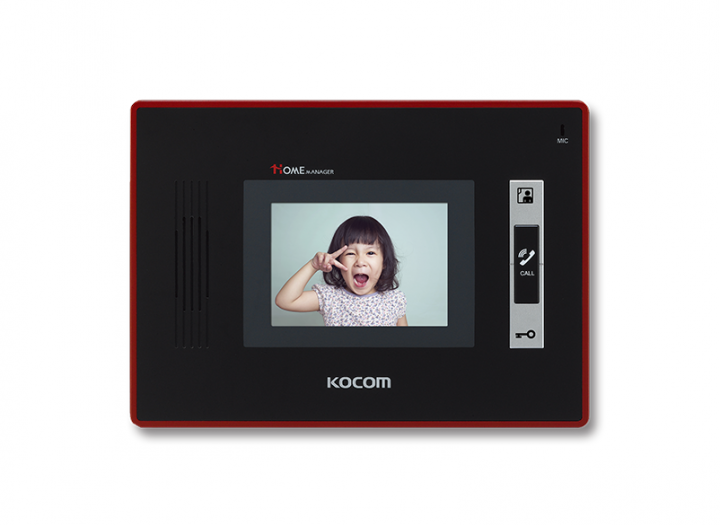

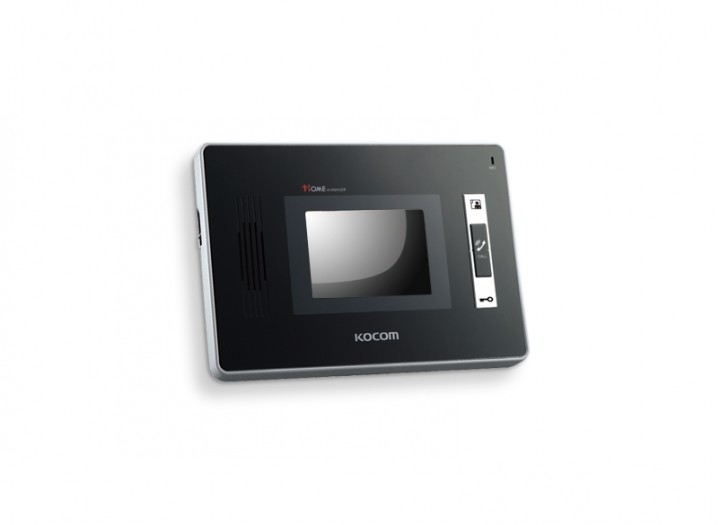

Interphone KCV-W354/DW354
| - 3.5 | |
|---|---|
| - Easy to operate using OSD menu and icon button | |
| - 5 Melody Selection | |
| - Communication between Door camera, Guard phone and Lobby phone | |
| - Connection up to 2 Door Cameras and 2 Monitors with Sub-Audio Unit (KDP-602G) | |
| - Internal Communication between indoor units |
On the list Product Inquiry
본문
Product specification
Specifications
| LCD | 3.5" Digital LCD (NTSC / PAL Auto switching) |
|---|---|
| Power | SMPS AC 127V 60HZ (W354) DC 15V (1.2A) (DW354) |
| Power comsumption | 0.7W(±20%)(Stand by), 13W(±20%)(In load) (W354) 1W(±20%)(Stand by), 13W(±20%)(In load) (DW354) |
| Communication System | Hands-free Type |
| Operating Temperature | 0℃ ~ +40℃ |
| Mount Type | Surface mount |
| Dimension | 195(W) x 140(H) x 34(D) mm |
